Capnography Extension

Capnography

Extension

Find similar products

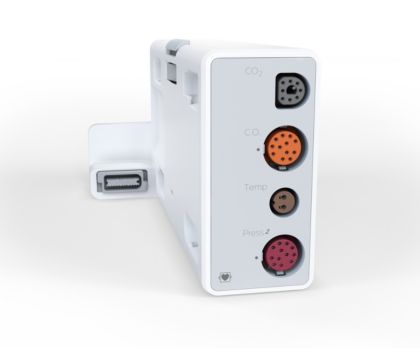

The capnography extension uses infrared absorption spectroscopy to continuously measure CO₂ values. Designed to work with IntelliVue patient monitors and racks, the capnography extension provides CO₂ waveform and numeric values, plus temperature and 2 invasive pressure measurements on the IntelliVue patient monitor display. A digital signal processor located in the sensor measures either sidestream or mainstream etCO₂ and awRR for patients in surgery, in critical care, and during transport.

Features
Power

Power

Extension is powered during tranport when connected to IntelliVu X3 or MX100.

Tuotetiedot

Physical Specifications
Physical Specifications
Dimensions
  • 200 x 97 x 90 mm/7.8 x 3.8 x 3.5 in
Max Weight
  • <0.50 kg/1.1 lb
Environmental Specifications
Environmental Specifications
Operating Temperature Range
  • 0–40° C/32–104° F
Operating Humidity Range
  • 15–95% RH non-condensing
Ingress Protection
  • IP32 (when in the horizontal position)
Storage Temperature Range
  • -20–60° C/-4–140° F
Operating Altitude Range
  • -500–3000 m/-1640–9842 ft
Storage Humidity Range
  • 5–90% RH non-condensing
Storage Altitude Range
  • -500–4600 m/-1640–15091 ft
